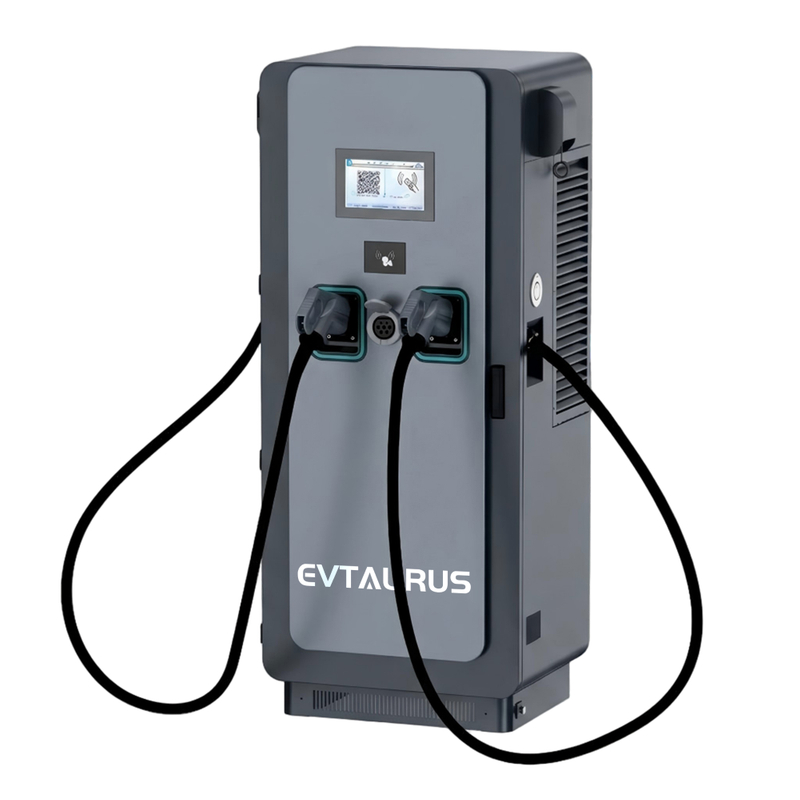

New Commercial Waterproof Ocpp 60KW 120KW CCS2 GBT Type2 DC+AC Fast Electric Car EV Charging Station for Commercial Use

A flexible, high-performance solution for commercial, fleet, and public EV charging. Supports DC 60–240kW and AC 22kW, compatible with 400V & 800V EVs.
Features IP54 outdoor enclosure, forced air cooling, 10" LCD display, and Plug & Charge, RFID, or QR code start. Ethernet, 4G, and OCPP 1.6 enable smart network management.
  • JT40-J

  • EVTAURUS

  • DC:CCS1/CCS2/CHAdeMO NACS(tesla)/GB/T AC:Type2/ Type1

  • DC200V~1000V

  • AC400V±20%

Availability:
  • Compatibility
    80–360kW output, DC 200–1000V, compatible with GB/T & IEC standards.
  • Locking
    Secure cable locking compliant with GB/T18487 to prevent accidental disconnection.
  • Durability

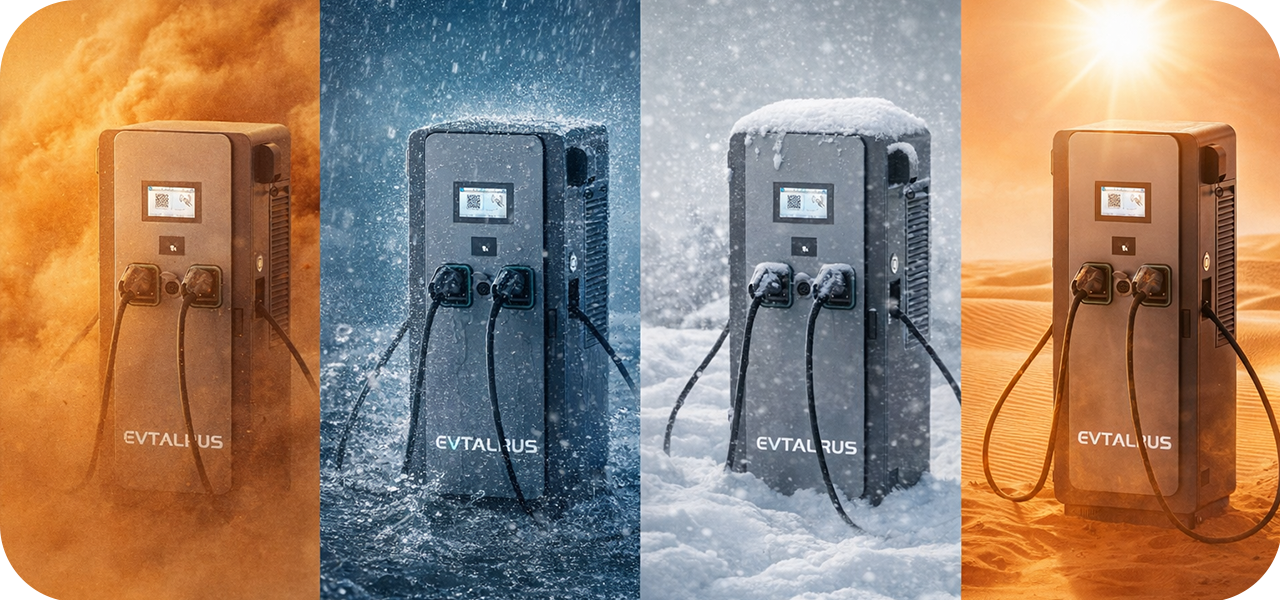

    Floor-mounted design, reliable operation from -30°C to 50°C.
  • Conductivity
    Multiple protections including over-current, over-voltage, short circuit, surge, and emergency stop.
  • Safety
    Up to 250A per gun, PF ≥0.98, THD <5%.
  • Installation
    Floor-mounted installation with 3m / 5m customizable cables.
  • Weatherproof
    IP54-rated for outdoor use.
  • Efficiency
    System efficiency ≥95%, supporting stable and cost-effective operation.

Commercial Use & User Experience

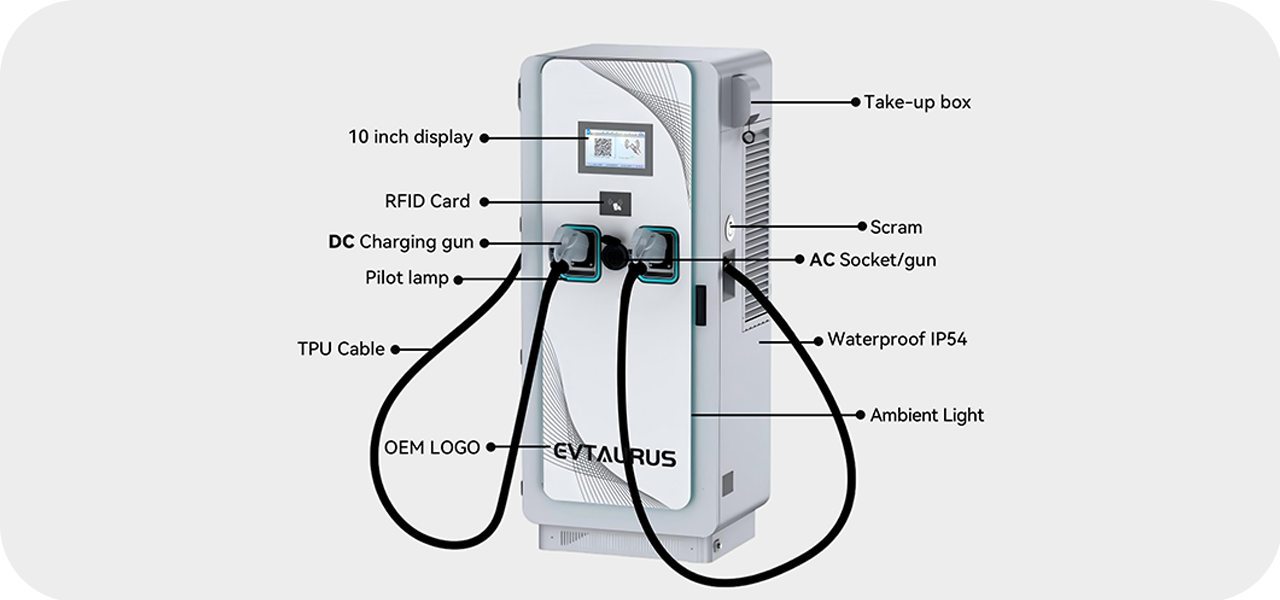

The EVTAURUS charging station combines DC fast charging and AC charging in one unit, helping operators serve more vehicles and improve station utilization. It features a 10-inch LCD display, Plug & Charge, RFID, and QR code start options, and flexible billing modes for easy operation.

Its floor-mounted modular design (≈280kg) with a 5m customizable cable makes installation simple and adaptable to different sites. Built-in protections include overcurrent, voltage, temperature, leakage, surge, and emergency stop, ensuring safe and stable operation.

With a durable IP54 outdoor structure and wide environmental tolerance, it is ideal for commercial parking, fleet depots, retail locations, and public charging networks.


02

Applications & Commercial Value

Designed for commercial efficiency, it achieves ≥95% energy conversion efficiency, power factor ≥0.98, and THD <5%, reducing operating costs while protecting the local grid. Flexible user access and billing options include Plug & Charge, RFID, QR code start, and automatic fixed power, fixed time, or fixed amount billing. The station supports IEC 62196-3 Type 2, IEC 61851, and ISO15118/DIN70121 communication standards, with Ethernet and 4G connectivity and OCPP 1.6 compliance for seamless integration into smart charging networks.
With comprehensive safety protections—overcurrent, over/under voltage, over-temperature, short circuit, leakage, surge, reverse polarity, emergency stop, and abnormal connection alarms—EVTAURUS ensures secure, efficient, and scalable charging solutions for modern commercial environments.

01



Power
DC60-240KW/AC22KW
Machine
Dimension(W*D*H)
889mm*607mm*1800mm
Class of protection
IP54(Outdoors)
Weight:Modular
About:280kg
Cooling
Forced air cooling
Installation type
Floor type
Cable length
5m(Customizable)
Input
Ac input voltage
AC400V±10%
Grid frequency
45Hz to 65Hz
Phase lines
L1、L2、L3、N、PE
Power factor
≥0.98
Current:THD
<5%


Output
Output power
DC0-60KW/AC0-22KW
Efficiency
≥95%
Output voltage
DC150V to 1000V
Measure
Dc meter
Output current
Single gun(DC0 to 200A)
Output current
Single gun(AC 0 to 32A)
Environment
Humidness
5% to 95%
Altitude
≤2000m
Storage TEMP
-40℃ to +70℃
Operating TEMP
-30℃ to 50℃ (50℃ to 70℃ Derated output)
Screen
Reveal
10" charging display
Scram
Press to stop
Starting mode
Plug and charge, swipe card, scan code (optional)
Billing mode
Automatic charging fixed power fixed amount fixed time (optional)
Secure
Charging interface
standard
IEC 62196-3 TYPE2
Charging connection
mode
IEC 61851
Pile and car
communication
PLC/CAN way,Conform to DIN70121/ISO15118 Standard,disposition OCPP1.6
agreement
Communication mode
Ethernet、4G(Selectable)
Protection function
Protection functions Grounding, over current, over and under voltage,
over temperature, short circuit, insulation, polarity, surge,
emergency stop, access control, abnormal connection, alarm, etc
