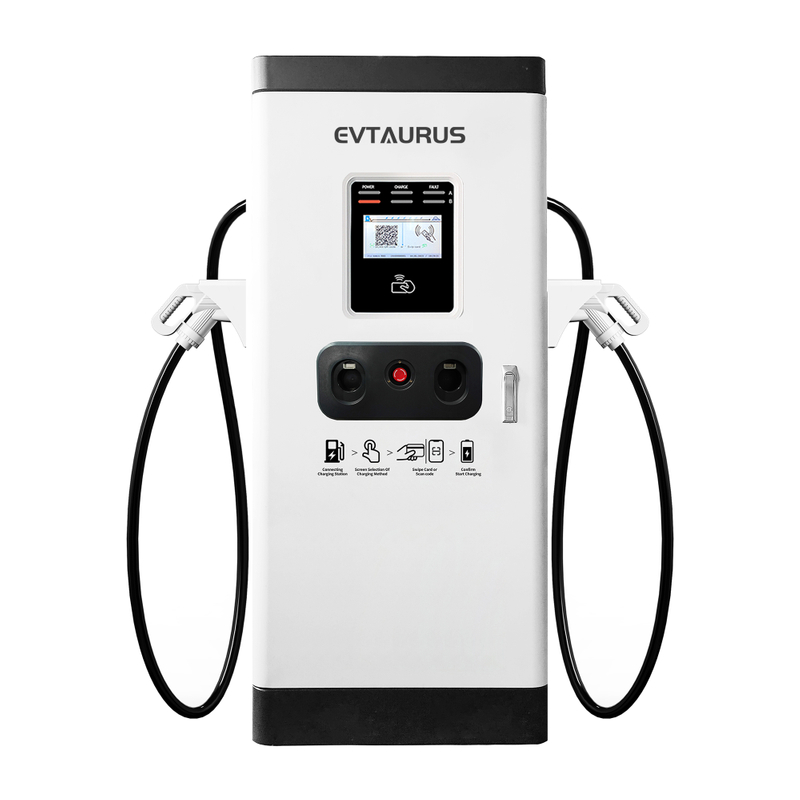

240kw 320kw 360kw All in One CCS GBT NACS High Power DC Fast Electric Car EV Charging Station for Commercial Use

Commercial IP54 all-in-one high-power truck transport vehicle dual-gun fast charging station, supporting CCS1, CCS2, GBT, NACS (Tesla), Chademo plug
  • JT40-E

  • EVTAURUS

  • DC200V~1000V

  • AC400V±20%

Availability:
  • Compatibility
    80–360kW output, DC 200–1000V, compatible with GB/T & IEC standards.
  • Locking
    Secure cable locking compliant with GB/T18487 to prevent accidental disconnection.
  • Durability
    Floor-mounted design, reliable operation from -30°C to 50°C.
  • Conductivity
    Multiple protections including over-current, over-voltage, short circuit, surge, and emergency stop.
  • Safety
    Up to 250A per gun, PF ≥0.98, THD <5%.
  • Installation
    Floor-mounted installation with 3m / 5m customizable cables.
  • Weatherproof
    IP54-rated for outdoor use.
  • Efficiency
    System efficiency ≥95%, supporting stable and cost-effective operation.

Vehicle Compatibility

This DC charger is compatible with a wide range of electric vehicles, including:

Passenger cars (CCS1/CCS2/CHAdeMO/NACS(tesla)/GBT-DC)

Electric buses and vans

Fleet and delivery vehicles

Commercial and municipal EVs

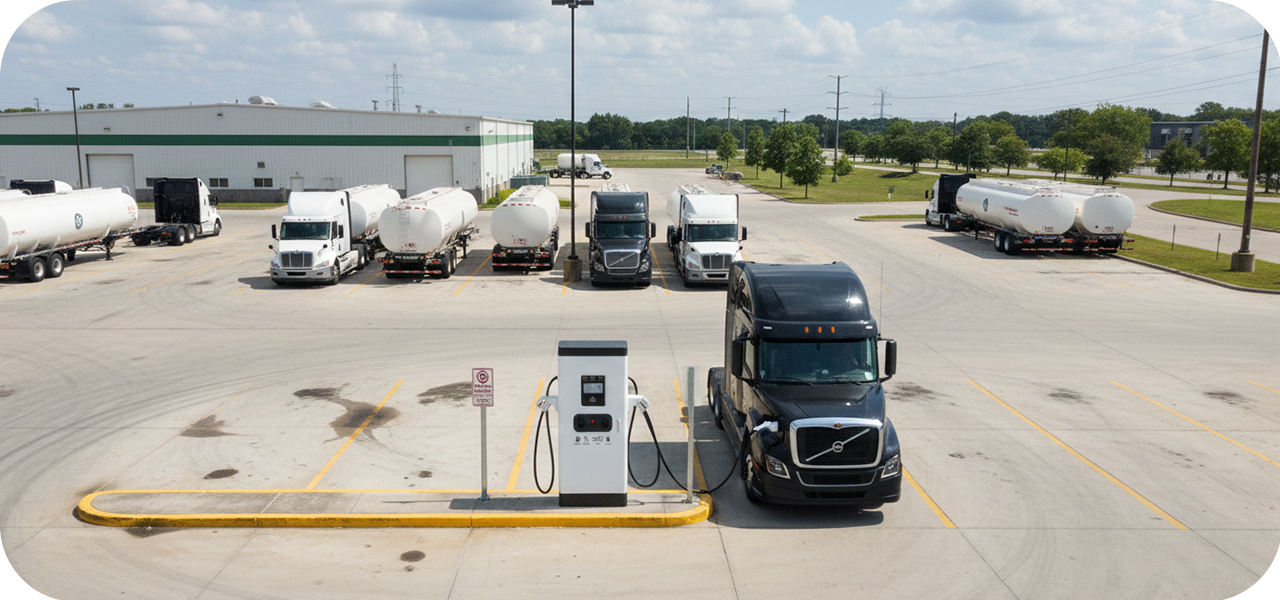

300kw ev charger

Urban public charging stations: Suitable for buses, taxis, and municipal fleets.

Shopping malls & parking lots: Offers convenient charging for private EVs during shopping or parking.

Highway rest areas: Provides fast charging for long-distance travel.

Power service centers & commercial hubs: Supports fleet and logistics vehicle operations.

Limited-space sites: Wall or pedestal mounting options allow flexible deployment.

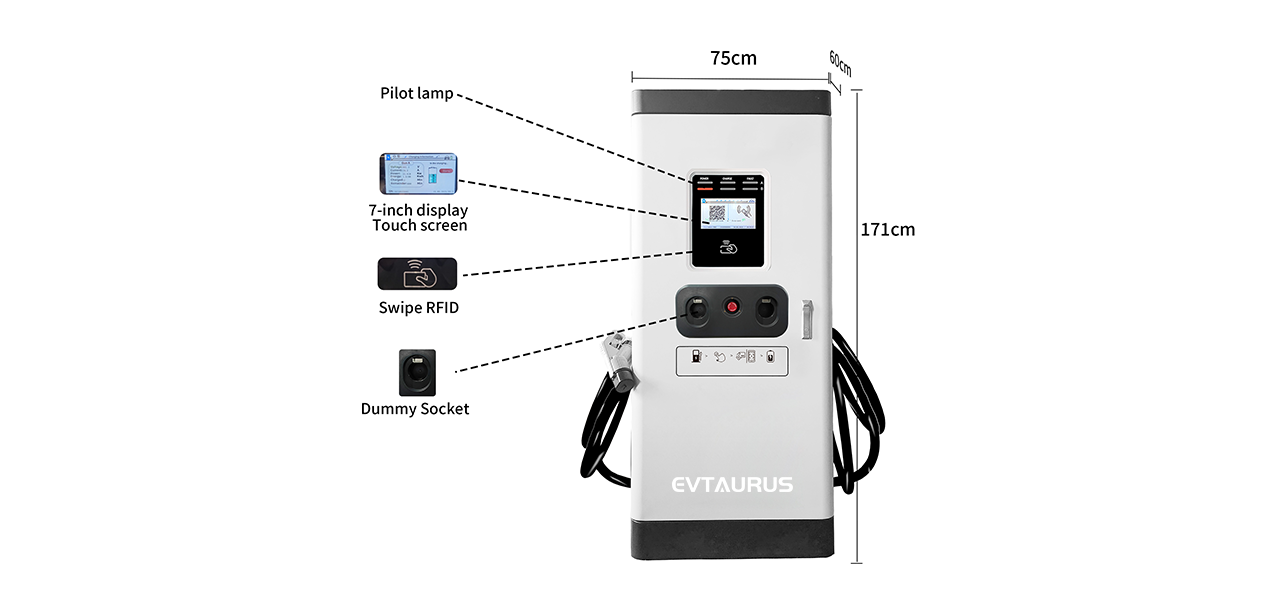

SIZE

Advanced Safety & Intelligent Protection Features

Equipped with a comprehensive suite of active protection mechanisms, this DC fast charger ensures safe and reliable charging under various conditions.SOC (State of Charge) overcharge protection

Battery overcharge prevention

BMS data anomaly detection

Vehicle battery voltage irregularity detection

Leakage protection & lightning protection

These intelligent safety functions help prevent equipment failure and extend battery life, ensuring stable operation for both the vehicle and the charging system.




Power80KW/120KW/160KW/180KW/240KW/320KW/360KW
MachineSize(W* D* H)750mm*600mm*1700mm
Weight:
Including module
120KW160KW180KW240KW320KW360KW
≈240kg≈260kg≈270kg≈300kg≈320kg≈400kg
Installation typeFloor type
Defense Lv.IP54( Outdoors)
CoolingForced air cooling
Charging cable length3m、  5m(Customizable)
InputAC input voltageAC380V±10%(3P+N+PE)
Phase lineThree-phase five-wire system/ L1、   L2、   L3、   N、   PE
Current THD<5%
Grid frequency45Hz to 65Hz
Power factor≥0.98
OutputRated output power120kw、160kw、180kw、240kw、320kw( Customizable)
Output voltageDC200V to 1000V
Single gun output current0 to 250A
Single gun output power0 to 250KW
Efficiency≥95%
Method of measurementDc meter measurement
EnvironmentOperating temperature-30℃ to 50℃  ( 50℃ to 70℃Derated output)
Storage temperature-40℃ to +70℃
Humidness5%  to 95%  ( No condensation)
Altitude≤2000m( Full load output)
ScreenDisplay screen7 inch touch screen
ScramPress to stop
Starting modeSwipe card, scan code, VIN charge, password
start(optional)
Billing modeAutomatic charging, fixed  power, fixed amount, fixed
time(optional)
SecureProtection functionGrounding, over-current, over-voltage,
over-temperature, short circuit, insulation, polarity,
surge, emergency stop, access control, abnormal
connection, alarm, etc
Charging interface standardGB/T20234, IEC 62196-2EE, IEC 62196-2FF
Charging connection modeGB/T18487
Pile and car communicationCAN mode, in line with GB/T27930-2015 standard
Communication modeEthernet,4G (optional)
