Electric vehicles (EVs) have become a cornerstone of modern transportation, offering a cleaner and more sustainable alternative to traditional internal combustion engine vehicles. Central to their functionality is the charging system, which allows EVs to replenish their batteries efficiently and safely. Among the different types of chargers, the DC EV charger stands out for its ability to provide fast, direct current charging that significantly reduces charging time compared to conventional AC chargers. Understanding how a DC EV charger works is essential for EV owners, fleet operators, and industry professionals who aim to optimize charging efficiency and maintain battery health.

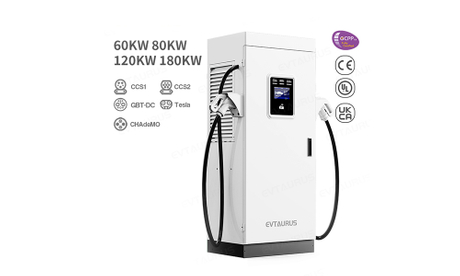

A DC EV charger, also known as a direct current fast charger, is a device that supplies electricity directly to an electric vehicle’s battery using direct current. Unlike AC chargers, which supply alternating current and rely on the vehicle’s onboard charger to convert AC to DC, DC chargers bypass this conversion. This direct delivery of DC power allows the EV battery to charge at a much faster rate, making it ideal for public charging stations, commercial fleets, and high-demand charging scenarios.
DC chargers are available in various power ratings, typically ranging from 50 kW for standard fast chargers to over 350 kW for ultra-fast charging systems. These chargers are designed to be compatible with multiple EV models and adhere to safety and communication standards to ensure proper operation.
To understand how a DC EV charger functions, it is important to familiarize yourself with its main components. A typical DC EV charger consists of several key parts:
Power Conversion Unit (Rectifier): This component converts AC power from the grid into DC power suitable for the EV battery. It ensures stable voltage and current delivery, optimizing charging efficiency.
Control Unit: This unit manages the communication between the charger and the EV, monitoring battery status, charging levels, and temperature. It ensures that the charger operates safely and adapts to the vehicle’s charging requirements.
Cooling System: High-power DC charging generates heat, which must be managed to protect both the charger and the EV battery. Cooling systems, which can include air or liquid cooling, prevent overheating during fast charging.
Safety Mechanisms: Safety is paramount in high-power charging. DC chargers are equipped with circuit breakers, ground fault protection, and overvoltage or overcurrent protection to safeguard both users and equipment.
Connector and Cable: The charging cable and connector deliver DC power directly to the EV battery. Common standards include CCS (Combined Charging System), CHAdeMO, and Tesla’s proprietary connectors, depending on the vehicle type.
The operation of a DC EV charger involves several critical steps, from establishing a connection with the vehicle to safely delivering high-power DC electricity to the battery:
Connection and Authentication: The first step occurs when the user connects the EV to the charger. The control unit verifies the vehicle’s identity and battery specifications. Some chargers also use RFID cards, mobile apps, or other authentication methods to confirm authorized access.
Communication Protocols: Once connected, the charger communicates with the EV using standardized protocols, such as CAN bus or PLC (Power Line Communication). This communication determines the battery’s current state of charge, maximum allowable voltage and current, and temperature limits.
Power Conversion and Delivery: After communication is established, the AC power from the electrical grid is converted to DC power by the rectifier. The DC current is then supplied directly to the battery, bypassing the onboard AC-to-DC converter. This direct delivery allows for rapid charging, sometimes adding hundreds of kilometers of range within a short period.
Monitoring and Adjustment: During charging, the control unit continuously monitors the battery’s voltage, current, and temperature. If the battery approaches full capacity or if conditions exceed safe thresholds, the charger automatically reduces power or terminates charging to protect the battery.
Completion and Disconnection: Once the battery reaches the desired state of charge, the charger stops delivering power. Users can safely disconnect the EV, and the charger resets to standby mode, ready for the next vehicle.
DC EV chargers offer several benefits over AC chargers, making them essential for fast and efficient charging:
Speed: By delivering DC power directly to the battery, charging times are significantly reduced. Fast chargers can provide a 0-80% charge in under an hour for most EVs, while ultra-fast chargers can achieve this in 15-30 minutes for compatible vehicles.
High Power Capability: DC chargers can support high-power charging, allowing fleet operators and commercial charging stations to service multiple vehicles quickly.
Battery Management: The integrated control systems ensure that the charging process is optimized for battery health, preventing overcharging and minimizing degradation over time.
Convenience: DC chargers are ideal for public locations, highways, and fleet operations where rapid charging is critical, reducing downtime and increasing operational efficiency.
While DC EV chargers provide significant advantages, there are challenges to consider:
Infrastructure Requirements: High-power DC chargers require robust electrical infrastructure, including high-voltage connections and sufficient grid capacity. Installation costs can be higher than for AC chargers.
Battery Compatibility: Not all EVs are compatible with all DC charging standards. Understanding connector types, voltage limits, and manufacturer recommendations is essential for safe and effective use.
Heat Management: Fast charging generates heat in both the charger and the EV battery. Efficient cooling systems are necessary to prevent damage or reduced charging efficiency.
Cost: DC chargers are typically more expensive to purchase and maintain than AC chargers, which may affect deployment decisions for smaller businesses or residential users.
Safety is a central aspect of DC EV charger design. High currents and voltages pose inherent risks, which is why modern chargers integrate multiple protection systems:
Overcurrent Protection: Prevents excessive current flow that could damage the battery or wiring.
Overvoltage Protection: Ensures that voltage levels remain within safe limits for the battery and the vehicle.
Ground Fault Protection: Detects leakage currents and prevents electrical shock.
Temperature Monitoring: Prevents overheating of the battery or charging unit, often adjusting charging speed to maintain safe operation.
These systems work together to provide a safe, reliable, and efficient charging experience, protecting both the vehicle and the user.
DC EV chargers are commonly deployed in public charging stations, commercial fleet depots, and highway rest areas. Their fast-charging capabilities make them suitable for locations where downtime must be minimized. For fleet operators, DC chargers allow multiple vehicles to recharge quickly between shifts, enhancing operational efficiency and reducing the need for large numbers of spare vehicles.
Public DC chargers support the broader adoption of electric vehicles by providing convenient and rapid charging solutions for drivers on long trips or in urban areas where overnight charging is not always feasible. This accessibility is crucial for accelerating the transition to sustainable transportation.
The field of DC EV charging is evolving rapidly, with innovations aimed at increasing charging speed, efficiency, and accessibility. Some of the current trends include:
Ultra-Fast Chargers: Chargers exceeding 350 kW are becoming more common, capable of adding hundreds of kilometers of range in under 15 minutes for compatible vehicles.
Smart Charging: Integration with software platforms allows dynamic load management, scheduling, and remote monitoring, optimizing grid usage and reducing operational costs.
Vehicle-to-Grid (V2G) Compatibility: Emerging chargers may allow bidirectional energy flow, enabling EVs to supply power back to the grid during peak demand periods.
Wireless and Plugless DC Charging: Research is ongoing into wireless DC charging, which could eliminate cables and streamline the charging process while maintaining high-speed energy transfer.
These advancements promise to make DC EV charging faster, more efficient, and more user-friendly, supporting the growth of the EV market worldwide.
Understanding the working principles of a DC EV charger is essential for anyone involved in electric vehicle ownership, fleet management, or EV infrastructure development. By converting AC grid power into DC and delivering it directly to the battery, these chargers provide fast, efficient, and safe charging solutions. Key components such as the power conversion unit, control systems, cooling mechanisms, and safety features ensure reliable operation and protect both the battery and the user.
DC EV chargers play a critical role in enabling rapid charging for public, commercial, and private applications, supporting the broader adoption of electric vehicles. As technology advances, these chargers will become faster, smarter, and more integrated with energy systems, further enhancing convenience and sustainability in transportation.
A thorough understanding of how DC EV chargers operate allows users to maximize efficiency, maintain battery health, and make informed choices when selecting and deploying charging infrastructure.
