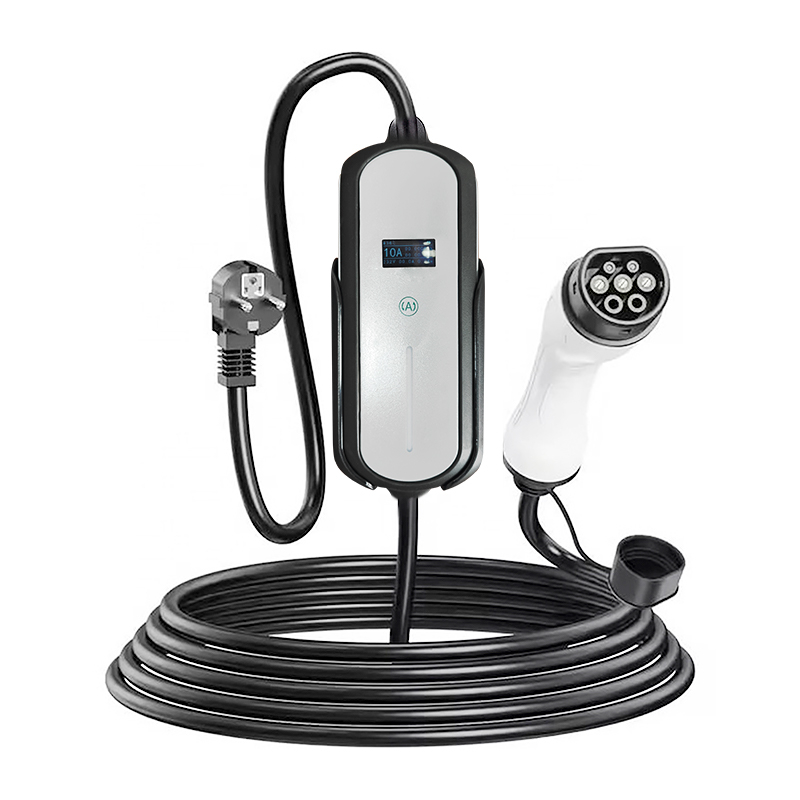

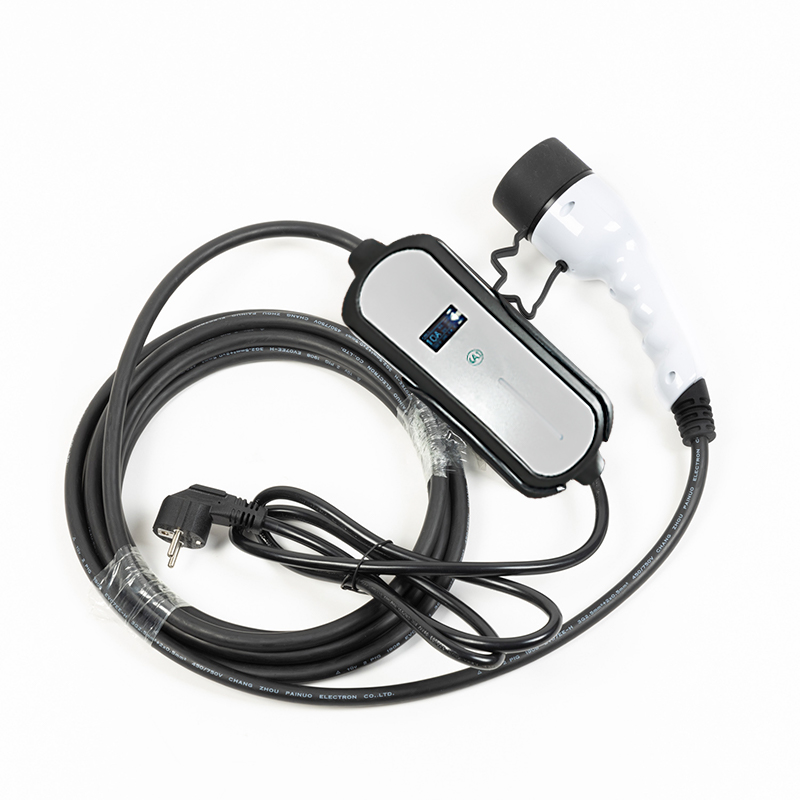

Adjustable 16A 32A home Electric Vehicle Portable EV Charger

  • JTM2C06

  • EVTAURUS

  • JT-M2C06

  • 16A/32A

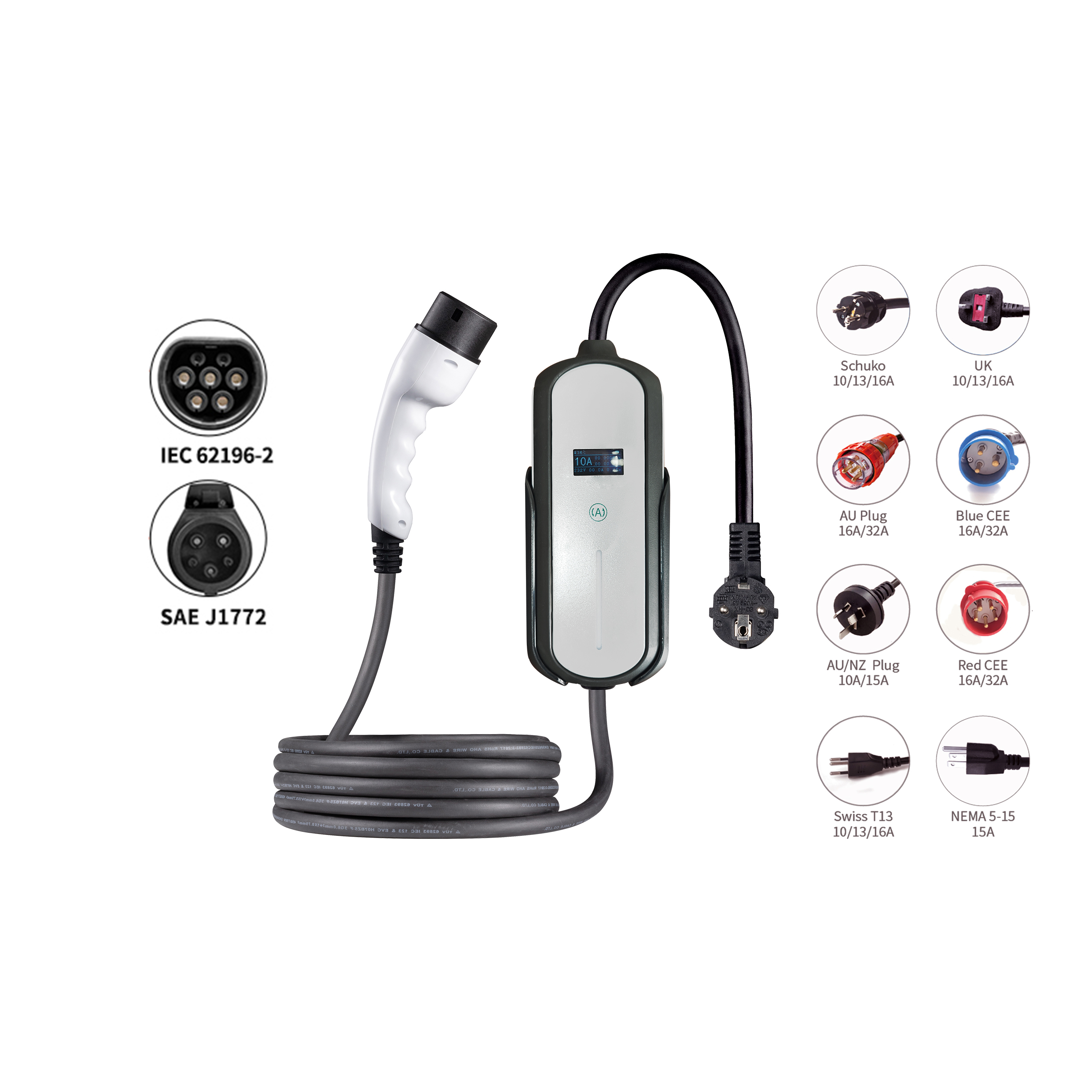

  • Type1/Type2/Tesla/GBT

  • 3.5KW/7KW/11KW/22KW

  • 5M or customized

  • -25℃~+60℃

  • 1Phase 、3Phase

  • Schuko10/13/16A,Swiss,CEE,NEMA 6-20,UK,NZ,AU.

Availability:
facebook sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button

3.5kw/7kw/11kw/22kw Portable EV Charger

邮件海报(1)

Standard Type2/GBT
Rated Voltage AC230V±20%/AC380v±20%
Rated Current 6A-32A
Standard Type1/Tesla
Rated Voltage AC110V±20%/AC240V±20%
Rated Current 6A-32A
IP Grade CONNECTOR-IP54,CONTROL BOX-IP65
Dimension of Control Box 90mm(L)×60mm(WI)×250mm(H)
Package Charging connector,Product Manual,
Certificates of Compliance,Warranty Card,
PortableBag, 8A to 16A adaptor


This portable EV charger offers the perfect solution to all people who want to charge their electric cars at single-phase. Our home EV charger offers charging power of 7 kW at 32A. This means that it will fully charge a 23kWh battery in 3h45m (Renault Zoe). BMW i3 94Ah will be charged in 4h 30m with this electric car charger.

With the press of a button, you can adjust the current between 8A, 10A, 13A, 16A, or 32A to suit your needs.


Q1: What power options does the AC Portable EV Charger have?
A1: It offers two charging options, 3.5KW for standard needs and 7KW for faster charging.


Q2: What type of plug is it compatible with?
A2: It is compatible with Type 2 IEC 62196 plugs.


Q3: Is it suitable for outdoor use?
A3: Yes. It features IP65 waterproof protection, making it suitable for various weather conditions and outdoor environments.


Q4: How difficult is the installation?
A4: The installation is extremely easy. It has a plug-and-play functionality, so you can quickly set it up without the need for complex procedures.


Q5: Are there any safety features?
A5: Yes. It has built-in safety features such as overcurrent protection to ensure the safety of your vehicle and the charger during the charging process.


Q6: Can I monitor the charging details?
A6: Certainly. The charger is equipped with a display screen that allows you to conveniently monitor various charging details, such as the charging current, voltage, and remaining charging time. This enables you to have a clear understanding of the charging progress and status of your electric vehicle at any time.
