Home » Products » EV Charging Cable » Double-headed EV Charging Cable » Type1 To Type2 EV Charging Cable Single Phase 16A 32A EVTAURUS

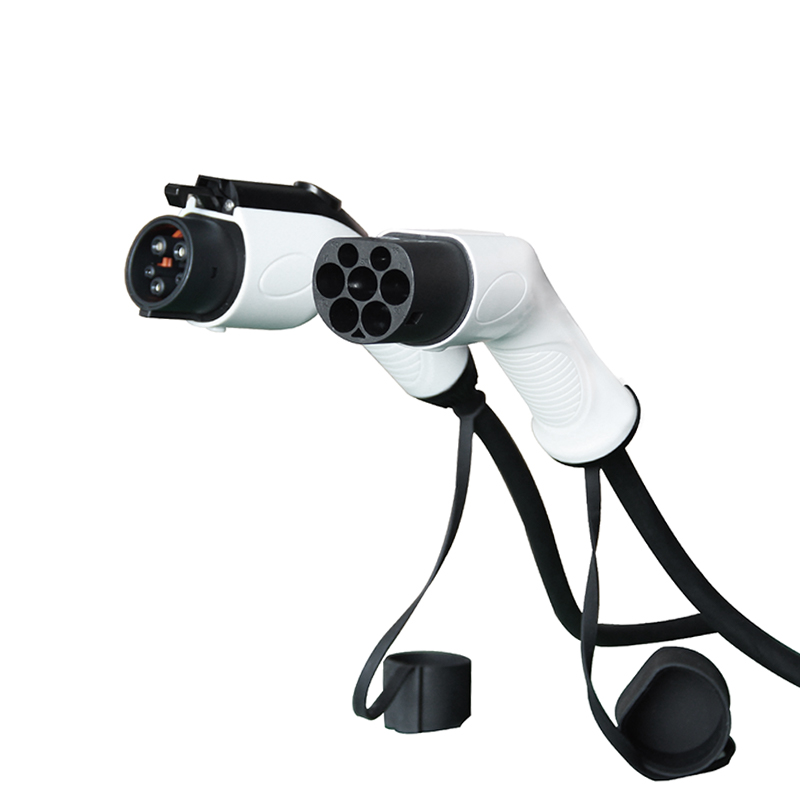

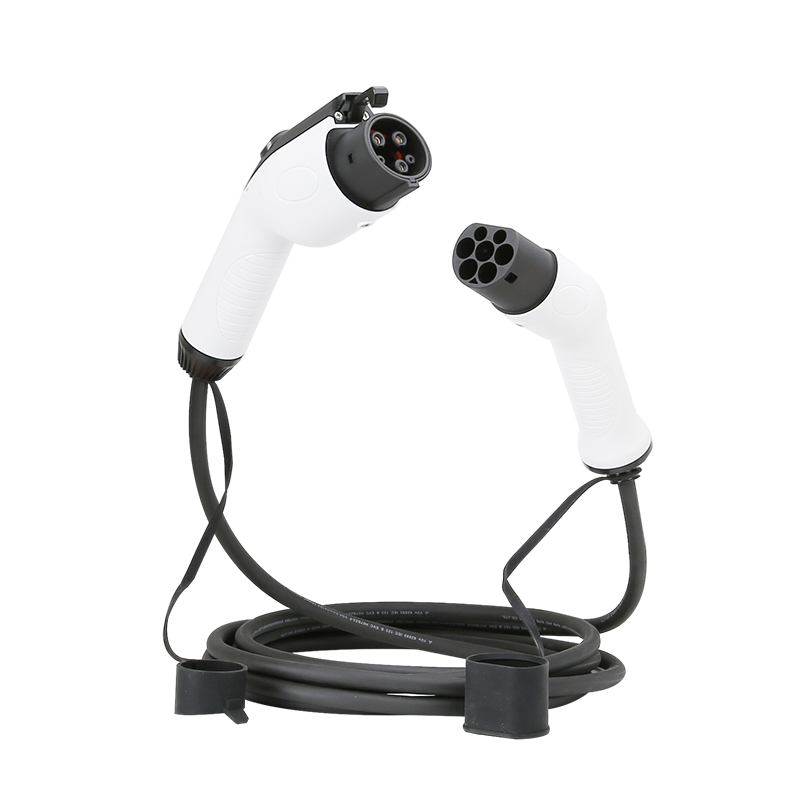

Type1 To Type2 EV Charging Cable Single Phase 16A 32A EVTAURUS

This Type 1 to Type 2 EV charging cable enables seamless charging of electric vehicles with a Type 1 (SAE J1772) inlet from Type 2 (IEC 62196-2 / Mennekes) charging stations. Available in 16A (3.6kW) and 32A (7.2kW) single-phase variants, and in 5m or 10m lengths, it offers flexibility to suit various charging needs.
  • EVTAURUS

  • Type1 -Type 2

Availability:
  • Portability
    Lightweight and flexible cable design, available in 5m or 10m for easy storage and transport.
  • Specialized
    J1772 plug includes an optional padlock function to prevent unauthorized unplugging.
  • Durability
    Built with a robust PBT handle and tested to withstand frequent daily use and mechanical stress.
  • Conductivity
    Copper alloy contacts ensure excellent conductivity and stable charging performance.
  • Safety
    IEC/TUV/CE certified, tested up to 2,500 VDC, ensuring high electrical safety standards.
  • Installation
    Simple plug-and-charge design, compatible with all standard public and home charging stations.
  • Weatherproof
    IP54-rated for protection against dust, rain, and outdoor environments.

  • Efficiency
    Supports 16A/32A single-phase charging, delivering 3.6/7.2 kW stable power.

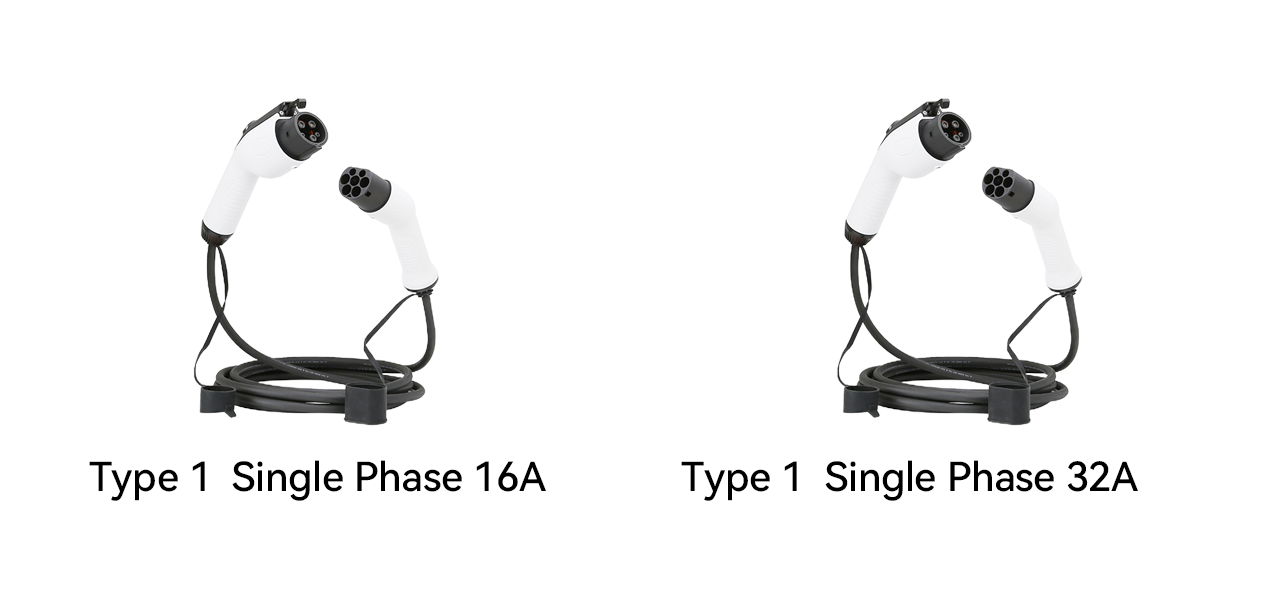

Type1 cable Single Phase

Features (Rewritten & Optimized)

Product Name: Type 1 to Type 2 Charging Cable (IEC 62196-2)
Operating Voltage: Single-phase
Rated Current: 16A / 32A
Max Charging Power: 3.5 kW / 7 kW
Durability: Mechanical lifespan of over 10,000 plug-in and pull-out cycles
Operating Temperature: -40°C to +85°C
Certifications: TUV & CE approved
Protection Level: IP65 (during operation)

Type1 to type2 Single Phase

. Easy-to-Use Plug Design
Ergonomic connectors provide a firm grip and secure lock. Anti-slip features ensure smooth plugging and unplugging, even in wet or cold conditions.

. Weatherproof for Outdoor Use
Built with IP-rated protection, the cable works reliably in rain, sunlight, dust, and temperature changes. Suitable for year-round outdoor charging.

. Broad EV & Charger Compatibility
Works with most Type 1 EV models and universal Type 2 charging stations. Ideal for AC home chargers, portable chargers, and public wallbox systems.



Product NameEV Charging cable / Mode 3 EV charger
EV connectorTYPE1 to TYPE2
Rated voltageAC220V-240V
Current16A / 32A
Power3.5KW/7KW
Cable5m / customizable
Cable specifications3*2.5+1*0.5mm² / 3*6+1*0.5mm²
Cable colourWhite / Black/customizable
Warranty12 months
CertificateCE
Waterproof gradeIP54
Operating Temperature-30℃ ~ +50℃
