20KW 30KW 40KW 60KW DC Fast EV Charging Station for Commercial Home Use

DC fast charging for high efficiency,offering up to 40KW of power and multiple connection and mount options. Sleek, modern and compact this DC is suitable for different types of locations and footprints and offers curb appeal.
  • JT40-A

  • EVTAURUS

  • 0A-250A

  • 20KW,30KW,40KW,60KW

  • 5m or customized

  • AC400±20%

  • CCS1/CCS2/CHAdeMO/NACS/GB/T

Availability:

Vehicle Compatibility

This DC charger is compatible with a wide range of electric vehicles, including:

Passenger cars (CCS1/CCS2/CHAdeMO/NACS(tesla)/GBT-DC)

Electric buses and vans

Fleet and delivery vehicles

Commercial and municipal EVs


Urban public charging stations: Suitable for buses, taxis, and municipal fleets.

Shopping malls & parking lots: Offers convenient charging for private EVs during shopping or parking.

Highway rest areas: Provides fast charging for long-distance travel.

Power service centers & commercial hubs: Supports fleet and logistics vehicle operations.

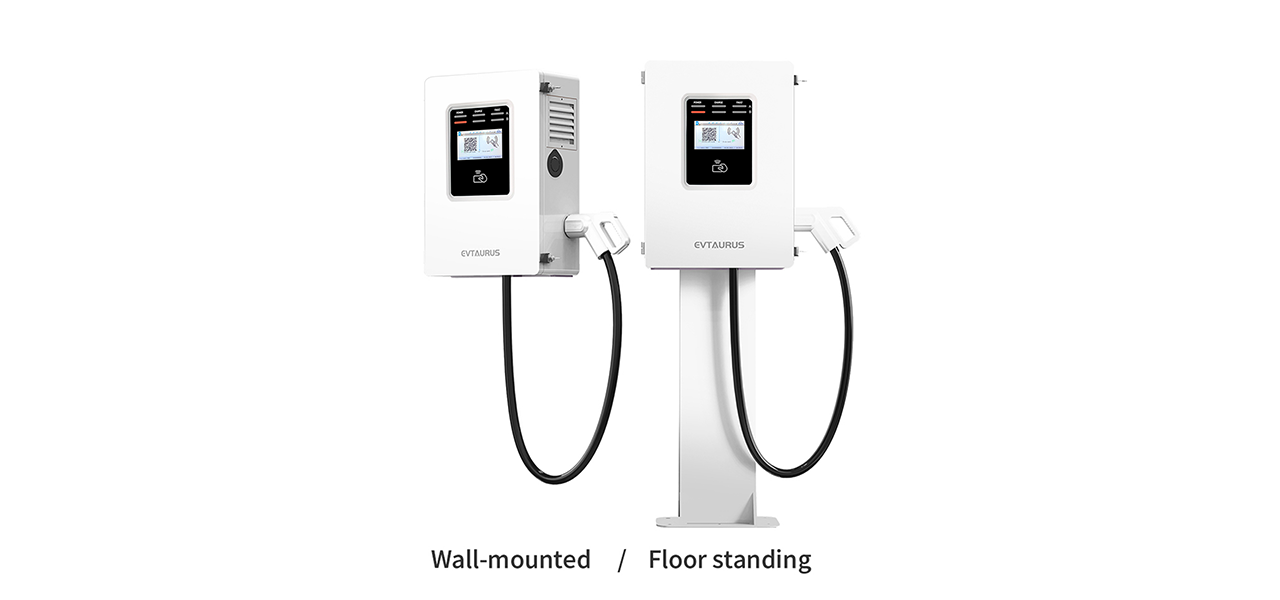

Limited-space sites: Wall or pedestal mounting options allow flexible deployment.

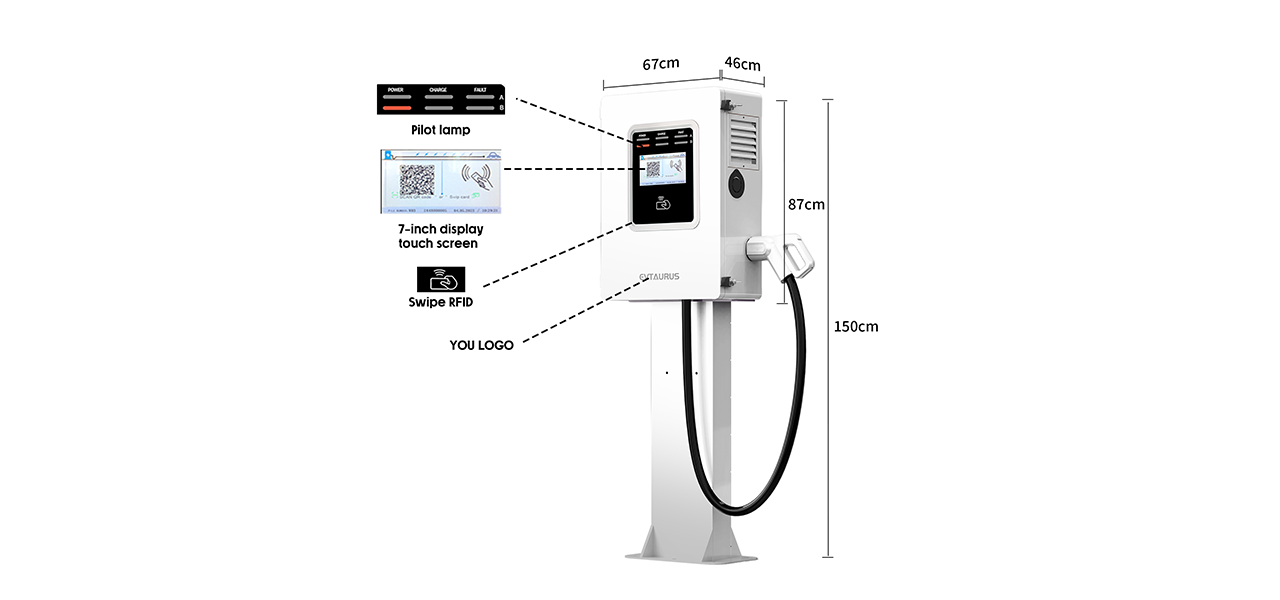

DC 40KW wall standing -2

Advanced Safety & Intelligent Protection Features

Equipped with a comprehensive suite of active protection mechanisms, this DC fast charger ensures safe and reliable charging under various conditions.SOC (State of Charge) overcharge protection

Battery overcharge prevention

BMS data anomaly detection

Vehicle battery voltage irregularity detection

Leakage protection & lightning protection

These intelligent safety functions help prevent equipment failure and extend battery life, ensuring stable operation for both the vehicle and the charging system.

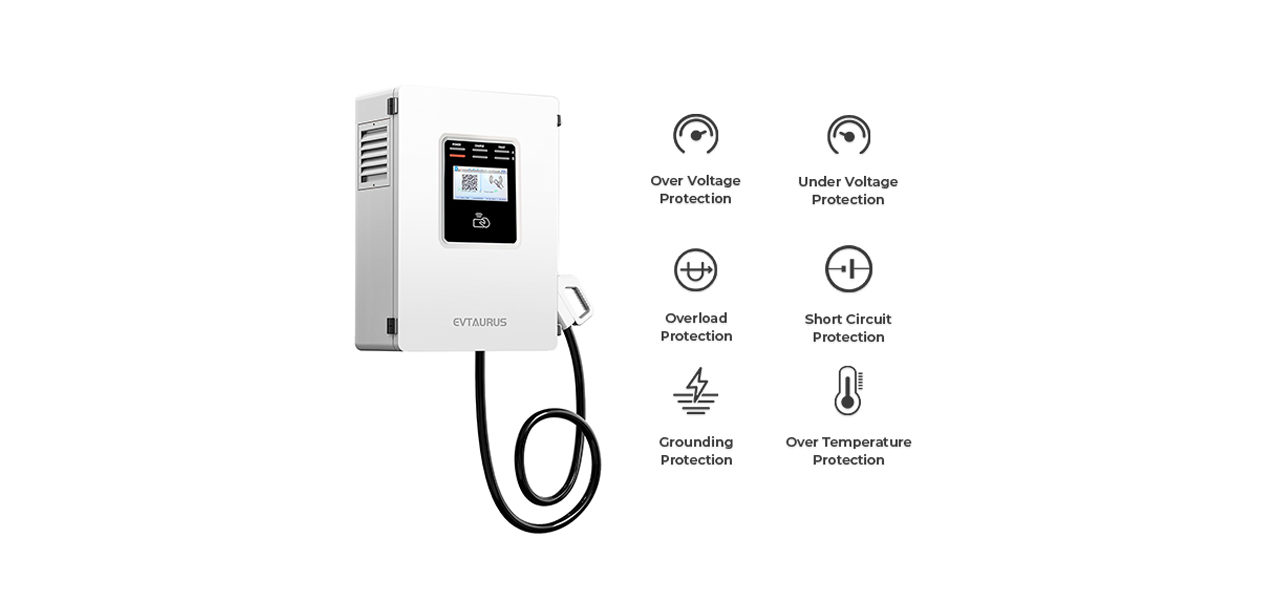

DC 40KW wall standing


Power20KW/30KW/40KW
MachineDimension(W*D*H)480mm*230mm*670mm
Weight50~60kg
Installation typeWall-mounted/Floor-mounted
Class ofIP54(Outdoors)
protection
CoolingForced air cooling
Charging3m、5m (Customization)
cable length
InputAC input voltageAC380V±20%(3P+N+PE)
Phase&linethree-phase five-wire system/L1、L2、L3、N、PE
Current:THD<5%
Grid frequency45Hz-65Hz
Power factor≥0.98
ExportationRated output power20KW/30KW/40KW(selective)
Output voltageDC250V~1000V
Output current20KW30KW40KW
0~50A0~100A0~133A
Output power0~20KW0~30KW0~40KW
Efficiency≥95%
Accuracy level0.5
Pulse constant50 imp/kwh
EnvironmentOperating temperature-30~50℃ (50℃~70℃ Derated output)
Storage temperature-40℃~+70℃
Humidity5%~95%(No condensation)
Altitude≤2000 m (Full load output)
ScreenReveal7 inch touch screen
ScramPress to stop
Payment typeQR Code/RFID/Credit Cards( POS machine)
Starting modePlug and charge/swipe card/scan code (optional)
SecureBilling modeAutomatic charging/fixed power/fixed amount/fixed time (optional)
Protection functionGrounding, over current, over voltage, over temperature, short circuit, insulation, polarity, surge, emergency stop, abnormal connection alarm, etc.
Charging interface standardCCS1/CCS2/CHAdeMO/NACS(tesla)/GBT-DC
Charging connection modeIEC 61851
Pile and car communicationPLC way, Conform to DIN70121/ISO15118 Standard, disposition OCPP1.6 agreement

How to use:

How to start the charging

  1. Firstly, the most important step is to make sure the charger is well connected to the power.

  2. Secondly, use your Type 2 charging cable plug to connect the charging station with your electric vehicle. Plug first the charging station side and then the car side.

  3. Once the charging cable has clicked in place you are ready to start the charge.

  4. Also, there is the option to activate the charging station with RFID cards.

How to stop the charging

  1. Firstly, disconnect the Type 2 plug from the electric vehicle’s side when you finish charging.

  2. After, disconnect the charging station side.

  3. Remove the cable from the charging station when not in use.
