EVTAURUS
2-250A
5m or customized
40/60/120/160/180/240/300/320KW
AC380+15%
CCS1/CCS2/CHAdeMO/NACS/GB/T
| Availability: | |
|---|---|
Provides flexible power options to support different vehicle types and commercial usage scenarios, delivering rapid and efficient DC charging for high-traffic locations.
Designed with industrial-grade components, advanced cooling, and intelligent power control to ensure long-term stability, efficient energy management, and low operating costs.
Includes comprehensive protection features and a user-friendly interface. Certified with CE and UKCA, making it suitable for public, commercial, and fleet charging installations.

Public EV charging stations
Commercial parking facilities
Logistics companies & fleet operators
Car dealerships and service centers
Shopping malls and business parks
Residential communities and mixed-use complexes

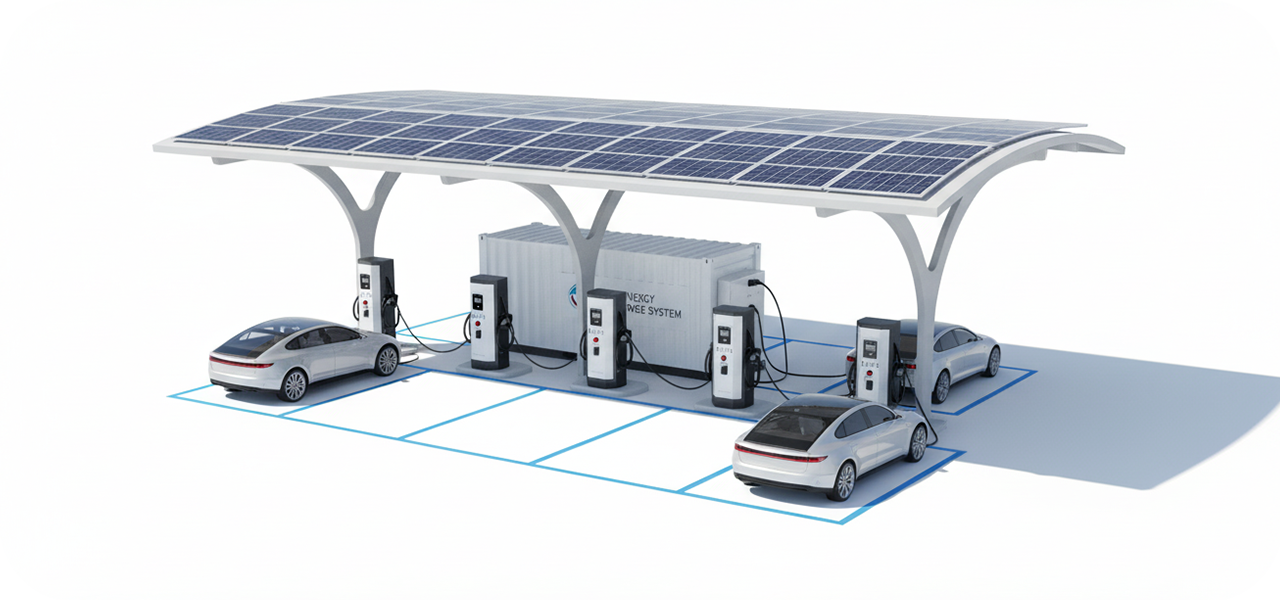

Sites that require integration with solar panels and energy storage cabinets to build a complete commercial energy system

| Product Model | JT40-C Series | |||||
| Details | Power | 40/60/80/100/120/150/160/180/240/300/320/360KW | ||||

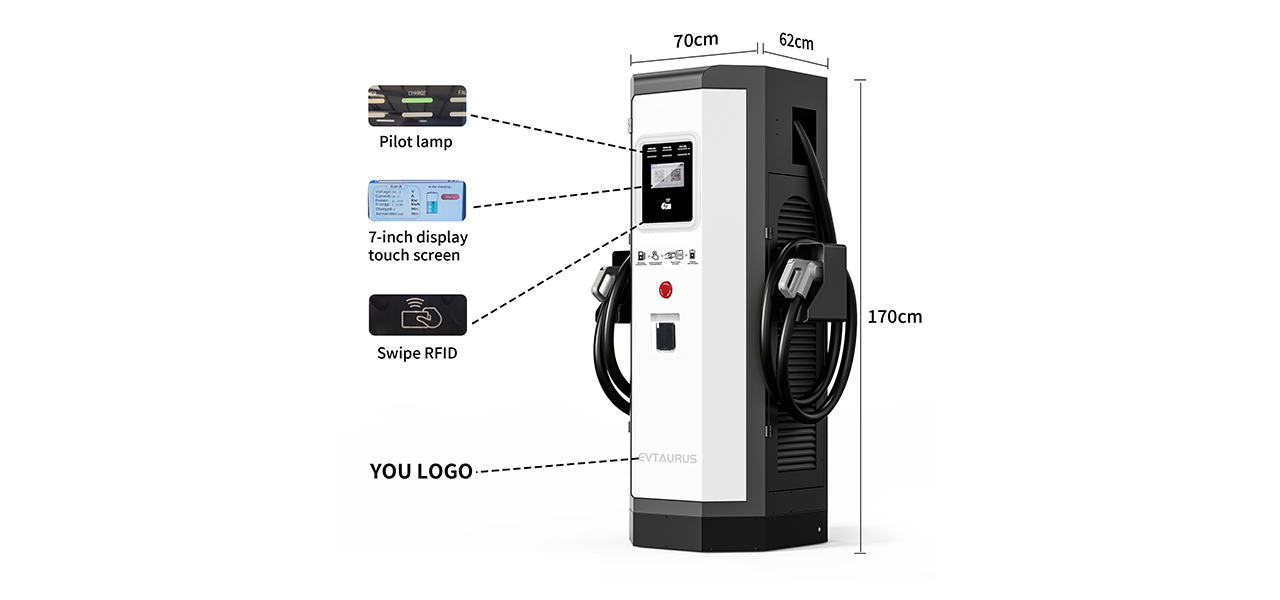

| Charging equipment | Reveal | 7 inch LCD color display touch screen | ||||
| Installation method | Floor standing | |||||
| Wiring method | Bottom in and bottom out | |||||

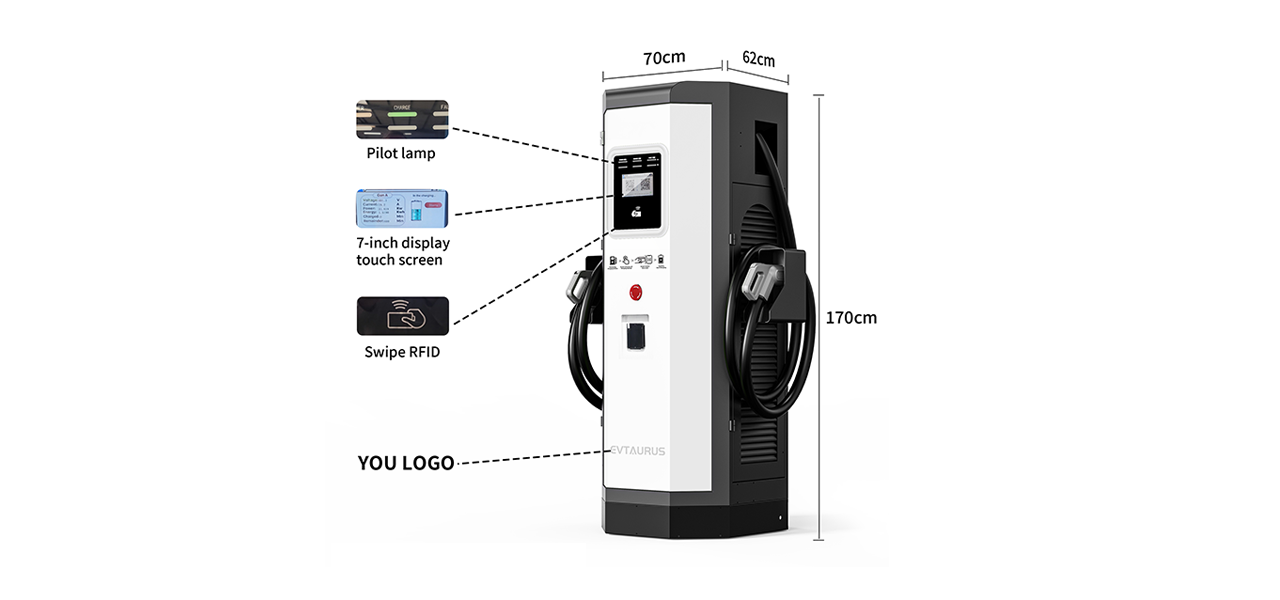

| Dimension | 620mm*700mm*1830mm | |||||
| Weight | 205-330KG | |||||
| Input Voltage | AC380V±20% | |||||
| Frequency | 50~60Hz | |||||
| Output Voltage | DC200V to 1000V | |||||
| Output Current | 0-250A | |||||
| DC Plugs | CCS1/CCS2/CHAdeMO/NACS(tesla)/GBT-DC | |||||
| OCPP Protoco | ocpp1.6 | |||||
| Length of charging cable | 2m、3m、5m (Customizable) | |||||
| Electrical indicators | Efficiency | ≥95% | ||||
| Power Factor | ≥0.98 | |||||
| Harmonic content THD | ≤5% (> 50%Load) | |||||
| Customization scope | Colors, Logos, Advertising Screens, Software | |||||
| Feature Design | Starting mode | Swipe card /scan code VIN /charge password start (optional) | ||||
| Payment method | RFID/APP( QR Code)/Credit Cards( POS machine) | |||||
| Communication Interface | Ethernet /4G -optional | |||||
| Certificate | CE, UKCA | |||||
| secure designed | Security function | •Charge Gun Temperature Detection •Over Voltage Protection •Under Voltage Protection •Overload Protection •Short Circuit Protection •Grounding Protection •Over Temperature Protection •Low Temperature Protection •Insulation Monitoring Protection •Polarity Reversal Protection •Lightning Protection •Emergency Stop Protection •Leakage Protection | ||||
| Environmental indicators | Working TEMP | ‘-30℃ to 50℃ (50℃ to 70℃ Derated output) | ||||
| Working humidity | 5%~95% No condensation | |||||
| Altitude | <3000m | |||||
| IP Grade | IP54 | |||||
| Cooling method | Forced air cooling | |||||
| Noise control | ≤60dB | |||||
| MTBF | 100,000h | |||||
What power options are available for this charging station?
The charging station offers multiple power options, including 40KW, 60KW, 80KW, 100KW, 120KW, 150KW, 160KW, 180KW, 240KW, 320KW, 360KW, and 400KW, to meet a variety of charging needs.
How fast can it charge an electric vehicle?
The charging station features fast-charging technology, allowing EVs to reach 80% charge in just 30 minutes, saving users valuable time.
What payment methods does the charging station support?
It supports multiple payment methods, including RFID cards, QR codes, and POS machines, ensuring convenience for users.
How many guns does the charging station support, and what types?
The station is available with either 1 or 2 guns and supports CCS1, CCS2, CHAdeMO, and GBT connector types for maximum compatibility.

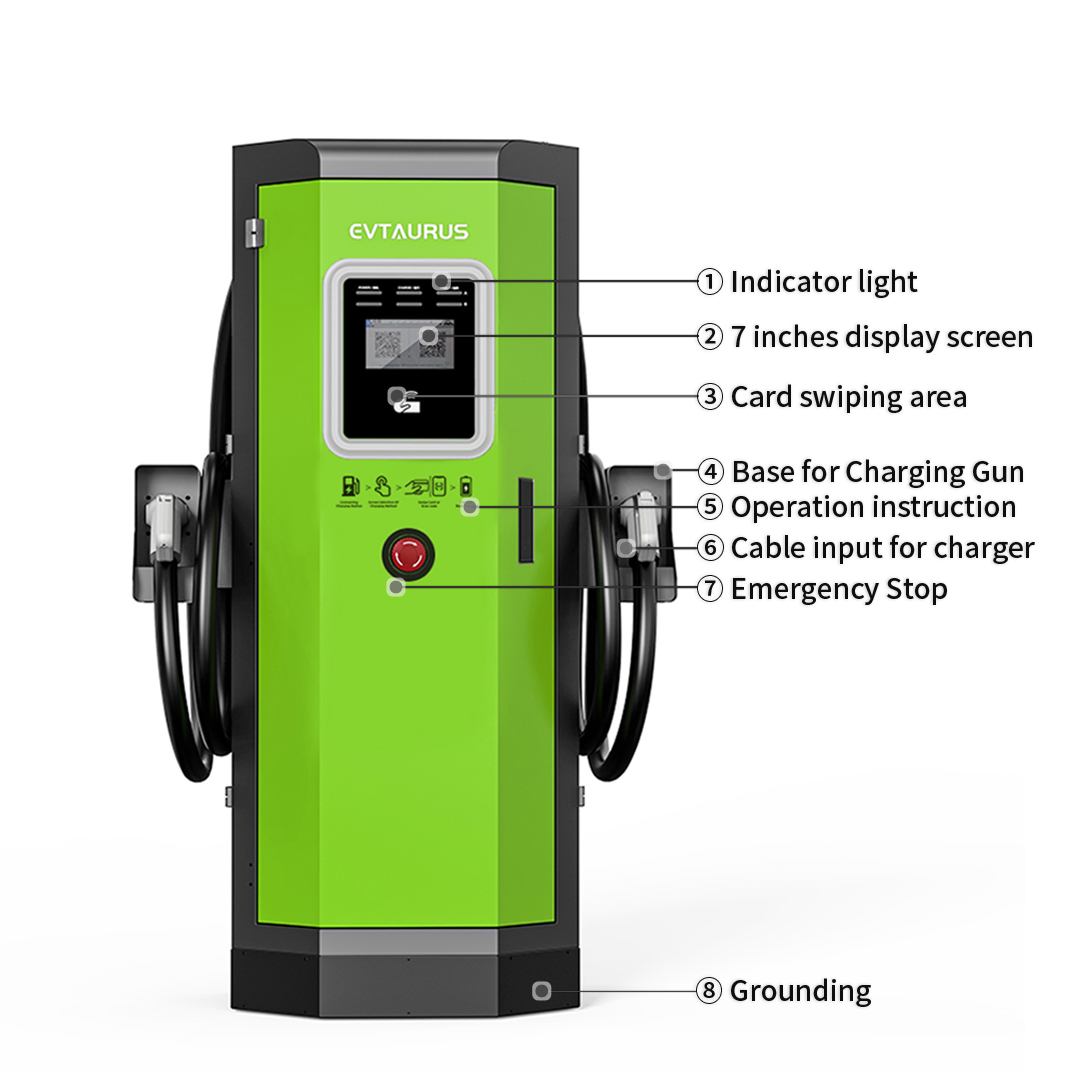

What kind of display does the charging station have?
It is equipped with a 7-inch LCD color touch screen for an intuitive and user-friendly experience.
Is the charging station weatherproof?
Yes, the charging station has an IP54 weatherproof rating, making it durable and suitable for all types of weather conditions.
What is the warranty period for the charging station?
The charging station comes with a 24-month warranty, ensuring peace of mind and reliable performance.
Does the charging station comply with communication protocols?
Yes, the charging station supports OCPP 1.6 (2.01), ensuring seamless integration with various charging networks.
Is the charging station suitable for both residential and commercial use?
Absolutely, its flexible design, fast-charging capabilities, and customizable options make it ideal for both home and commercial applications.
Is the station customizable?
Yes, the charging station offers customization options to fit specific user requirements, making it a versatile solution for any charging network.
