Advantage
Robust and Waterproof Shell
The charger has a sturdy outer shell that provides both durability and strong water resistance, making it suitable for outdoor installation and use.
LCD Display
The charger is equipped with a LCD display that can show the charging status, making it easy for users to monitor the charging progress.
Real-time Temperature Monitoring
The charger can monitor the charging temperature in real time and immediately cut off the current if the setting value is exceeded. This feature ensures safe and efficient charging.
Side Button for Easy Control
The charger has a side button that can be used to turn the charger ON/OFF when we encounter an emergency situation, providing users with convenient control options.
Compatible with Ground-mounting Pole
If wall installation is not possible or convenient, the EVTAURUS Basic EV Charger can be used with a ground-mounting Pole, making it suitable for a wide range of installation scenarios.
Advanced Security Mechanism
The charger is equipped with a range of security features that protect both the charger and the electric vehicle from damage or accidents. These features include overload protection, short-circuit protection, and over-voltage protection.

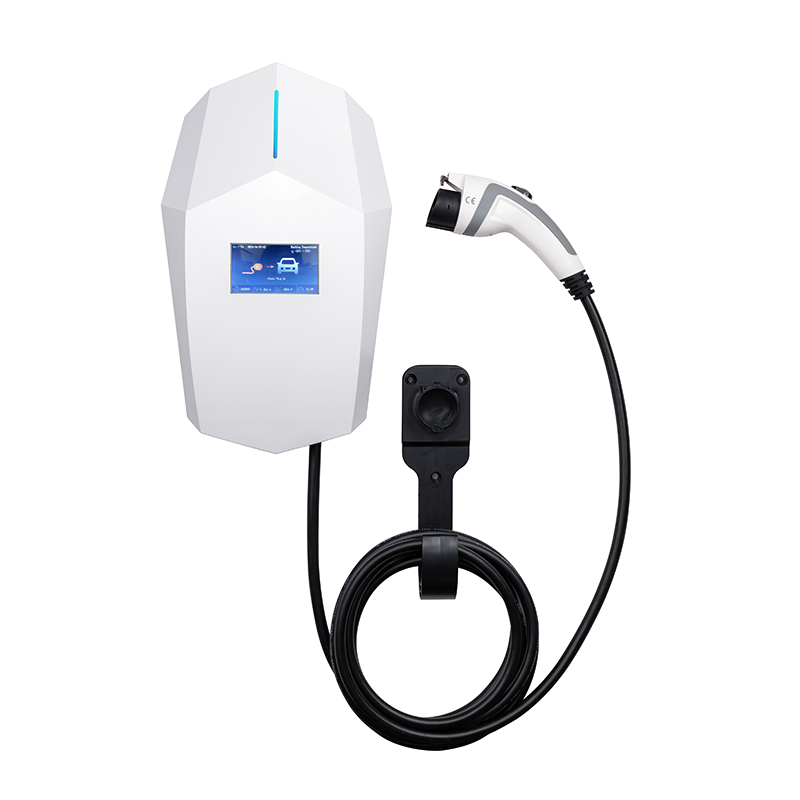

EVTAURUA Basic EV Charger
● Max Output Power:7KW/11KW/22KW
● Max Output Current:16A/32A
● Phase:Single phase/Three phase
● Basic Function
The EVTAURUS Basic EV charging station is a full-featured home EV charger designed to provide safe and reliable charging for electric vehicles. This EV wallbox charger delivers a maximum power of 22 kW and comes with waterproof housing, making it suitable for indoor and outdoor installations.The charger is equipped with side buttons, allowing users to control the device easily, and offers real-time monitoring of the charging status. The BESEN Basic EV Charger also comes with built-in safety mechanisms that ensure the vehicle's safety during long charging sessions, providing complete protection to the user.
JT10 | |||||||
Electrical parameters | Input voltage/Output voltage | AC230V/400V | |||||
Input frequency | 47-63HZ | ||||||
Output current | Single phase 16A/32A Three single 16A/32A | ||||||
Max.output power | 3.5kw/7kw/11kw/22kw | ||||||
Charging interface type | SAE J1772/IEC 62196 | ||||||
Current limiting protection | 110% | ||||||
Voltage stability accuracy | ≤1%(load current variation :0-100%) | ||||||
Current stability accuracy | ≤1%(output rated current :20-100%) | ||||||
Current harmomic | <5%(load:50%-100%) | ||||||
Efficiency | ≥96% | ||||||
Power factor | >0.99(load:50%-100%) | ||||||
Output ripple | ≤±0.5%(load current variation :10-100%,output voltage variation :85-115%)) | ||||||
Charging equipment | Overall dimension(mm) | 470*290*220mm | |||||
Weight | About:5-7kg | ||||||
Shell material/color | PC+ABS Flame retardant and flreproof,UL-94V0/White | ||||||
Cable length | 5m/customized | ||||||
Interface | No screen/4.3inches LCD color display(optional) ,LED indicator light | ||||||
Optional Models | BASIC/RFID/APP/OCPP | ||||||
Measurement accuracy | 0.5Level | ||||||
RCD | Type B | ||||||
Intelligent power adjustment | √ | ||||||
Environment indicators | Use environment | Outdoor/Indoor | |||||
Ambient temperature(℃) | -30℃-50℃ | ||||||
Three prevention protection | Moisture proof/Mildew proof/Salt fog prevention | ||||||
Protection level | IP54 | ||||||
Standby power consumption | ≤8W | ||||||
Cooling model | Forced air cooling | ||||||
Noise control | <65dB | ||||||
Safety index | Insualtion resistance greater than:10mΩ,Withstand voltage:1500V 1min | ||||||
MTBF | 30000H | ||||||
