How Do EV Charging Stations Work?

Views: 0     Author: Site Editor     Publish Time: 2025-03-20      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

As global attention shifts toward environmental protection and sustainability, electric vehicles (EVs) are becoming the preferred choice for transportation. However, many people are still unfamiliar with how EV charging stations work. This article will explain in a simple and accessible manner the working mechanism of EV charging stations, different charging methods, factors affecting charging time, and how to effectively use public charging facilities.


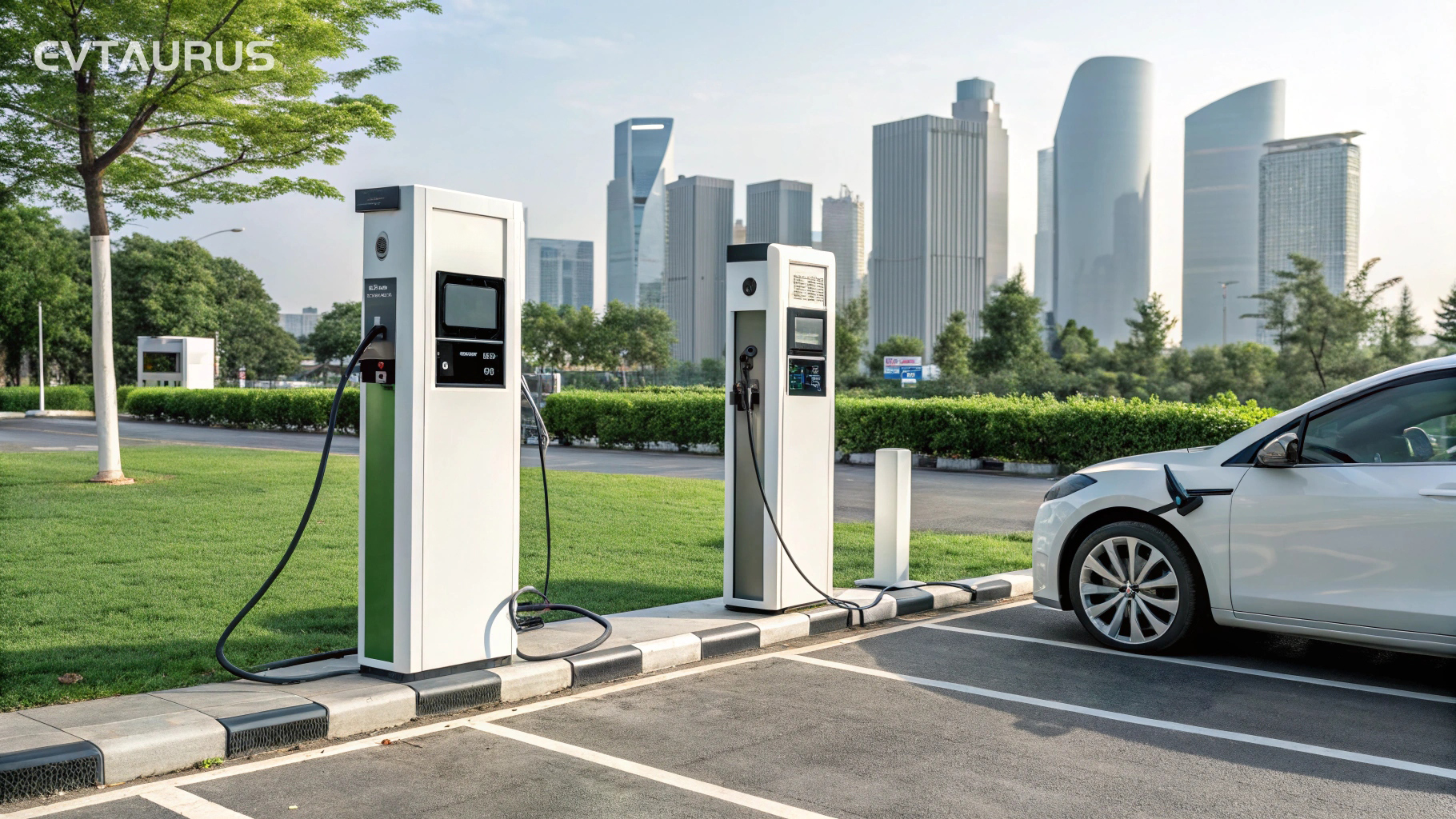

3.30-2

Basic Working Principle of EV Charging Stations

The main function of an EV charging station is to transfer electrical energy from the power grid to the vehicle’s battery pack. This process is typically facilitated by Electric Vehicle Supply Equipment (EVSE). The charging station draws electricity from the grid and delivers it to the EV through a connector or plug. The vehicle stores this electricity in a large battery pack, which powers its electric motor. Depending on the type of charging, the electricity can be either alternating current (AC) or direct current (DC). In AC charging, the current is converted to DC via an onboard charger before being stored in the battery. In DC charging, the current is directly delivered to the battery without requiring an onboard conversion.


Charging Level

Voltage

Charging Speed

Best Use Case

Level 1 Charging

120V

3-5 miles per hour

Home overnight charging, when charging time is not a concern

Level 2 Charging

240V

10-60 miles per hour

Home, workplace, and public stations for faster charging

DC Fast Charging

400V+ (DC)

80% charge in 20-30 minutes

Quick charging during long trips or high-demand situations


Charging Methods and Levels

EV charging is categorized into different levels, each offering varying charging speeds and suitable applications:

1. Level 1 Charging

· Description: Uses a standard 120V household outlet for charging.

· Charging Speed: Adds approximately 3-5 miles of range per hour.

· Best Use Case: Suitable for overnight home charging or when ample charging time is available.

2. Level 2 Charging

· Description: Uses a 240V power source, typically requiring the installation of dedicated charging equipment.

· Charging Speed: Adds approximately 10-60 miles of range per hour, depending on the vehicle and charger power.

· Best Use Case: Ideal for home, workplace, and public charging stations, offering a faster alternative to Level 1 charging.

3. DC Fast Charging

· Description: Delivers direct current directly to the vehicle's battery, bypassing the onboard charger.

· Charging Speed: Can charge a battery to about 80% in 20-30 minutes, depending on the station’s power output and the vehicle’s charging capability.

· Best Use Case: Suitable for situations requiring rapid charging, such as highway rest stops during long trips.

It is important to note that charging speed is influenced not only by the power of the charging station but also by the vehicle’s charging capacity. Not all EVs can charge at the highest available speed, so vehicle specifications should be considered when selecting a charging method.


Factors Affecting Charging Time

Several factors influence the time it takes to charge an EV, including:

· Battery Capacity: Larger batteries take longer to fully charge.

· Charging Power: Higher power stations charge vehicles faster.

· Vehicle Charging Capability: Different EV models have varying maximum charge acceptance rates, affecting charging speed.

· Initial Battery State: The battery’s remaining charge and temperature impact charging efficiency and speed.

Generally, Level 1 charging can take 20 hours or more for a full charge, Level 2 charging reduces this to 4-8 hours, and DC fast charging can replenish up to 80% of the battery in around 30 minutes.

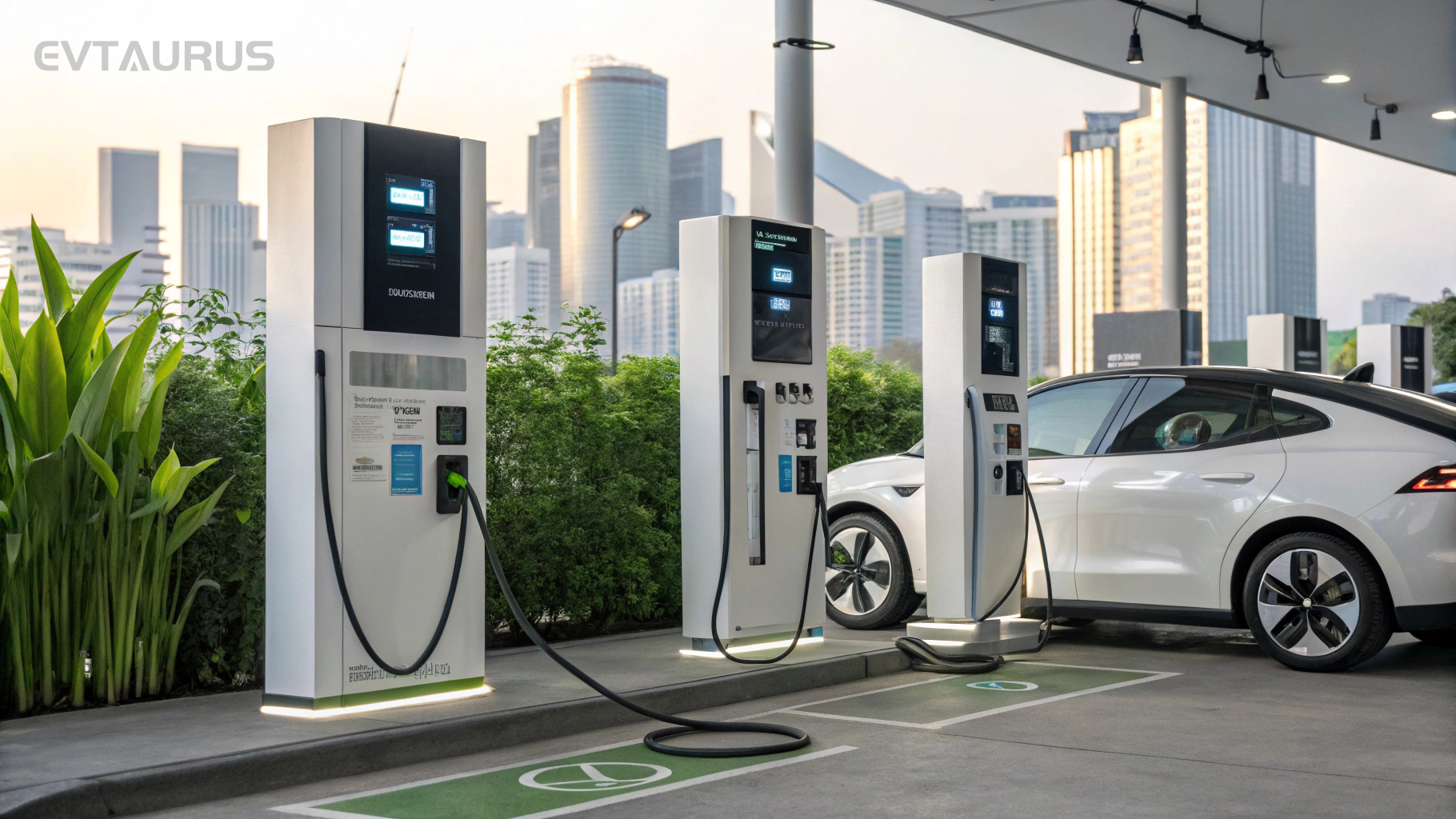

Using Public Charging Stations

As EV adoption grows, the number of public charging stations is increasing. When using public charging stations, EV owners should keep the following points in mind:

· Connector Type: Most EVs use the J1772 standard plug for charging, but certain brands may require an adapter to access non-proprietary stations.

· Cost: Some public charging stations are free, while others require payment, either per charging time, energy consumed, or a fixed fee.

· Access Requirements: Some stations may require a membership card or specific authentication to use.

· Charging Time Limits: High-demand locations may impose time limits to ensure more users can access charging facilities.

Before using a public charging station, EV owners should check its type, costs, and access requirements to ensure a smooth charging experience.

Home Charging Solutions

For most EV owners, installing a home charging station is the most convenient option. Home charging solutions typically include:

· Level 1 Charging: Uses a household outlet for charging without additional equipment installation.

· Level 2 Charging: Involves installing a dedicated 240V charging unit for faster charging.

When selecting a home charging solution, EV owners should consider their home's electrical capacity and compatibility and consult a professional for installation.

Conclusion

The working principle of EV charging stations is straightforward—they supply energy to charge batteries using different levels of charging. Level 1 charging is ideal for long-duration charging, such as overnight home charging. Level 2 charging, available at home and public locations, offers a faster alternative. DC fast charging provides high-power charging in a short time, making it ideal for long-distance travel. Charging speed depends on factors like battery capacity, station power, and vehicle compatibility. By choosing the right charging method and station type, EV owners can optimize charging efficiency and reduce costs. As charging networks continue to expand, EV adoption will become even more convenient, further promoting sustainable transportation.
